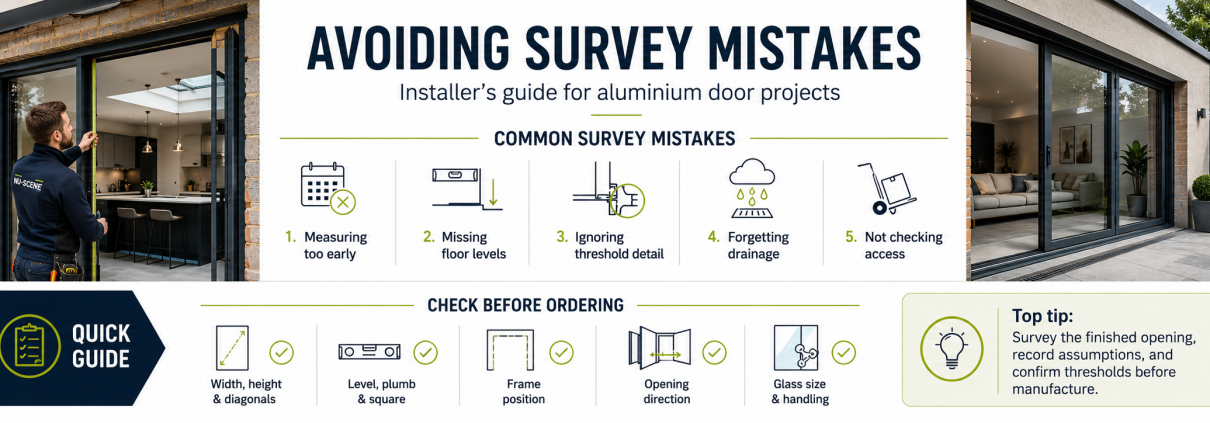

Installer’s Guide to Aluminium Door Survey Mistakes

A successful aluminium door installation starts long before the frame arrives on site.

It starts with the survey.

For installers, builders and contractors, the survey is one of the most important stages of any aluminium door project. A small mistake at this point can lead to delays, extra costs, damaged products, poor performance or an unhappy customer.

Whether you are working on sliding doors, bifold doors, French doors or aluminium entrance doors, accurate surveying helps make sure the product is manufactured correctly, delivered smoothly and installed with fewer issues.

This guide explains the most common survey mistakes on aluminium door projects and how installers can avoid them.

Why the Survey Matters

Aluminium doors are precision-made products.

Unlike some site-built elements, aluminium doors are usually manufactured to agreed sizes and specifications before arriving on site. This means the survey needs to be accurate, complete and based on the real site conditions.

A good survey helps confirm:

Opening sizes
Structural readiness
Threshold details
Floor levels
Drainage requirements
Access for delivery
Frame position
Glazing specification
Installation method
Potential site risks

If any of these details are missed, the project can quickly become more complicated.

Common Survey Mistakes on Aluminium Door Projects

1. Measuring the Opening Too Early

One of the most common mistakes is surveying before the opening is ready.

If the brickwork, blockwork, steel, timber frame or finished floor levels are not complete, the measurements may change before installation.

This can cause problems such as:

Frames arriving too large or too small
Uneven fitting gaps
Threshold clashes
Delayed installation
Extra trims or making good
Reordering costs

Where possible, survey from the finished structural opening. If that is not possible, make sure any assumed dimensions are clearly recorded and confirmed before manufacture.

2. Only Measuring Width and Height Once

A single width and height measurement is rarely enough.

Openings are often not perfectly square, level or plumb. Measuring in one place can hide problems that only become obvious during installation.

For every aluminium door opening, measure:

Width at the top, middle and bottom
Height on the left, centre and right
Diagonals where squareness is uncertain
Internal and external reveals
Structural opening depth

Always work from the tightest point, allowing the correct fitting tolerance for the chosen system.

3. Failing to Check for Square, Level and Plumb

An opening can measure correctly but still be unsuitable.

If the sides are out of plumb, the head is not level or the base is uneven, the door may be difficult to fit and adjust. This is especially important for sliding and bifold doors, where smooth operation depends on accurate alignment.

Before signing off the survey, check:

Is the head level?
Are the jambs plumb?
Is the base level?
Are the diagonals consistent?
Is there any twist in the opening?

A door that is forced into an uneven aperture may not perform correctly.

4. Ignoring Finished Floor Levels

Finished floor levels are critical on aluminium door projects.

This is particularly true where a low threshold, flush threshold or level access detail is required.

If finished floor levels are not confirmed during the survey, the installation may suffer from:

A threshold sitting too high
Internal flooring clashing with the track
Poor external drainage
Trip hazards
Incorrect frame position
A visible step where one was not expected

Always confirm the internal finished floor level and external finished level before ordering. Where levels are not yet complete, record who is responsible for confirming them.

5. Not Understanding the Threshold Detail

Thresholds are one of the biggest sources of confusion on aluminium door projects.

A customer may ask for a “flush threshold”, but the project may require drainage, weather protection, structural support and correct floor build-up to make that detail work properly.

During the survey, confirm:

Standard threshold or low threshold
Internal and external floor build-up
Required drainage route
Weather exposure
Track depth
Frame sitting position
Any tray, sill or cavity closer requirement
Whether the detail is practical for the site

A low threshold can look excellent, but it needs to be designed properly.

6. Forgetting About Drainage

Aluminium doors need to manage water correctly.

Large glazed doors, especially sliding and bifold systems, can be exposed to wind-driven rain. If drainage is not considered during the survey, water can build up around the threshold or track.

Check whether the project needs:

A sill
Integrated drainage
A drainage channel
A suitable external fall
Clear water escape routes
Protection from pooling water

The external surface should direct water away from the door, not back towards it.

7. Not Checking Structural Support

Aluminium doors are strong, but they still need a suitable structure around them.

The survey should confirm that the opening can support the door system and that any structural elements are complete or clearly specified.

This includes checking:

Lintels
Steel beams
Timber framing
Brickwork or blockwork
Load transfer
Fixing points
Deflection risk
Head clearance

For wide openings, structural movement or deflection can affect door operation. If anything looks uncertain, it should be raised before manufacture.

8. Missing Frame Position Details

Where the frame sits in the opening affects the final appearance, weathering and internal finish.

If the frame position is not agreed, the installer may face problems on site.

Confirm:

Set back from external face
Internal reveal depth
External reveal depth
Position relative to insulation or cavity
Plasterboard or render finishes
Sill projection
Trickle vent position if required
Clearance for handles and opening sashes

A clear frame position helps everyone understand how the finished installation will look.

9. Overlooking Access and Handling

A door may be made perfectly, but it still has to get to the opening.

Large aluminium doors and glass units can be heavy, awkward and fragile. The survey should always include an access check.

Consider:

Can the delivery vehicle reach the property?
Is there enough space to unload safely?
Are there steps, slopes or narrow paths?
Will the glass fit through the route?
Is mechanical lifting needed?
Are there overhead cables, scaffolding or garden obstacles?
Is there safe storage on site?

Access issues discovered on installation day can cause major delays.

10. Not Checking Glass Sizes and Weight

Large aluminium door projects often involve large glass units.

Even when the frame dimensions are correct, the glass size and weight can create installation challenges.

During the survey, consider:

Maximum glass sizes
Unit weights
Manual handling limits
Number of installers required
Need for glass lifting equipment
Safe route to the opening
Risk of damage during handling

For large sliding doors in particular, glass logistics should be planned early.

11. Assuming All Walls Are Straight

Many openings, especially on renovations, are not perfectly straight.

Walls may bow, reveals may taper and older properties may have irregular brickwork or render. If this is not picked up during the survey, the finished installation may need more trims or making good than expected.

Check for:

Bowed walls
Uneven reveals
Out-of-line brickwork
Render thickness changes
Plasterboard build-up
Uneven cavity closers
Existing structural movement

It is better to record these details early than explain them after the door has been fitted.

12. Forgetting Hardware Clearances

Handles, hinges, opening sashes and sliding panels all need space to operate.

A door that fits the opening may still clash with walls, furniture, reveals or kitchen units if clearances are not checked.

During the survey, confirm:

Handle projection
Opening direction
Stack position on bifold doors
Sliding panel direction
Clearance from internal walls
Clearance from kitchen islands or worktops
Curtain, blind or shutter positions
Radiators or furniture nearby

These checks are especially important on tight openings and internal corner layouts.

13. Not Confirming Opening Direction

Opening direction sounds simple, but it is a common source of errors.

Before ordering, confirm:

Viewed from inside or outside
Left-hand or right-hand opening
Inward or outward opening
Sliding direction
Bifold stack direction
Master door position
Traffic door position

It is helpful to mark drawings clearly and confirm the agreed handing with the customer or contractor.

14. Missing Ventilation Requirements

Some aluminium door projects may require trickle vents or another ventilation strategy, depending on the project and building requirements.

If this is missed during the survey, it can affect product specification, frame design and compliance.

Check whether the project requires:

Trickle vents
Mechanical ventilation coordination
Vent positions
Head clearance for vent covers
Customer approval of visible vent details

Ventilation should be confirmed before manufacture, not added as an afterthought.

15. Not Recording the Site Conditions Properly

A good survey is not just about taking measurements.

It is about creating a clear record that other people can understand.

Your survey notes should include:

Dimensions
Photographs
Floor level information
Threshold details
Access notes
Structural observations
Drainage requirements
Agreed frame position
Product style and configuration
Any assumptions
Any outstanding actions

Clear records help protect the installer, supplier and customer if questions arise later.

Survey Checklist for Aluminium Door Projects

Before placing an order, installers should check the following:

Opening Measurements

Width measured at top, middle and bottom
Height measured at left, centre and right
Diagonals checked where needed
Tightest points identified
Correct fitting tolerance allowed

Structure

Head is level
Jambs are plumb
Base is level
Lintel or steel is suitable
Fixing points are available
No obvious movement or deflection risk

Threshold and Levels

Internal finished floor level confirmed
External finished level confirmed
Threshold type agreed
Drainage route confirmed
Sill or channel requirement checked
Level access detail practical

Product Specification

Door type confirmed
Configuration agreed
Opening direction confirmed
Glass specification checked
Hardware colour confirmed
Ventilation requirements confirmed

Site Access

Delivery route checked
Glass handling route checked
Lifting requirements assessed
Safe storage available
Scaffolding or access restrictions noted

Documentation

Photos taken
Drawings marked up
Assumptions recorded
Customer or contractor sign-off obtained
Outstanding works listed

How to Avoid Costly Survey Errors

Use a Consistent Survey Process

A repeatable checklist helps reduce mistakes. Even experienced installers can miss details when every site is different.

Take More Photos Than You Think You Need

Photos are invaluable when checking details later, especially around thresholds, reveals, access and unfinished works.

Record Assumptions Clearly

If a floor level is not finished or a wall is due to be built out, do not treat it as confirmed. Record the assumption and make sure it is signed off.

Confirm Product Details Before Manufacture

Handing, colour, threshold, glazing, vents and hardware should all be agreed before the order is placed.

Communicate Issues Early

If the opening is not ready, the threshold detail is unclear or access is difficult, raise it before installation day.

Allow for Installation Tolerances

Do not order doors too tight. Aluminium systems need the correct fitting tolerance to allow for packing, levelling, fixing and sealing.

Work Closely With the Supplier

A good supplier can help confirm system limitations, maximum sizes, threshold options and technical details before the product is manufactured.

Why Aluminium Door Surveys Need Extra Care

Aluminium doors often involve large openings, slim frames and high-performance glass.

That combination means precision matters.

A small error can affect:

Door operation
Weather performance
Security
Thermal efficiency
Drainage
Appearance
Customer satisfaction

Taking time at the survey stage is one of the best ways to protect the quality of the finished installation.

Simple Summary: What Installers Need to Know

The survey is one of the most important parts of an aluminium door project.

Common mistakes include measuring too early, missing floor levels, overlooking drainage, forgetting access issues and failing to confirm opening direction.

Installers should measure carefully, check levels, record site conditions and confirm every detail before manufacture.

A thorough survey helps avoid delays, reduces rework and supports a smoother installation.

Supporting Aluminium Door Projects With Nu-Scene

At Nu-Scene, we work with homeowners, builders, installers and developers to supply aluminium doors and glazing systems that are designed around each project.

From sliding doors and bifold doors to entrance doors and large glazed openings, getting the details right at survey stage helps ensure a better result on site.

If you are planning an aluminium door project and want support with product options, sizes, thresholds or specification details, our team can help you choose a solution that suits the project and installation requirements.

FAQs About Aluminium Door Surveys

When should an aluminium door survey be carried out?

Ideally, the survey should be carried out when the structural opening is complete and the key finished floor levels are known. If this is not possible, all assumptions should be clearly recorded and confirmed before manufacture.

What measurements are needed for aluminium doors?

Installers should measure the width at the top, middle and bottom, and the height at the left, centre and right. They should also check levels, plumb, square, reveals and threshold details.

Why are finished floor levels important?

Finished floor levels affect the threshold position, drainage, access and final appearance of the installation. They are especially important for low threshold and flush threshold designs.

What is the biggest survey mistake on aluminium door projects?

One of the biggest mistakes is ordering from incomplete or assumed measurements without confirming final site conditions. This can lead to incorrect sizes, threshold issues and installation delays.

Do aluminium sliding doors need special survey checks?

Yes. Sliding doors often involve large glass units, heavy panels and wide openings, so access, structure, levels, drainage and glass handling should all be checked carefully.

Should installers check drainage during the survey?

Yes. Drainage is essential, especially for external aluminium doors exposed to rain. The survey should confirm sills, channels, falls and water escape routes.

Why does opening direction matter?

Opening direction affects usability, furniture placement, handle position and day-to-day operation. It should always be confirmed clearly before manufacture.
